GOMITO A 90° MASCHIO JIC 37° - MASCHIO GAS CONICO - Aertubi

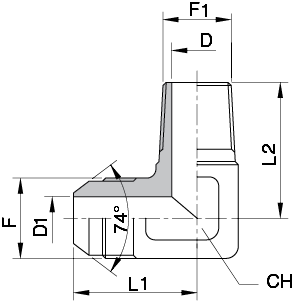

GOMITO A 90° MASCHIO JIC 37° - MASCHIO GAS CONICO

Code

Code

Codice

Code

Código

Pressure

Druck

Pressione

Pression

Presión

F=UNF/UN

Thread • Gewinde

Filetto • Filetage

Rosca

F1=BSPT

Thread • Gewinde

Filetto • Filetage

Rosca

L1

L2

D

D1

Ch

291.04.02I

350

7/16" - 20

1/8" - 28

23

20

5

4

11

291.04.04I

350

7/16" - 20

1/4" - 19

27

28

7

4

14

291.05.04I

350

1/2" - 20

1/4" - 19

27

28

7

6

14

291.05.06I

350

1/2" - 20

3/8" - 19

28

30

10

6

19

291.06.04I

350

9/16" - 18

1/4" - 19

27

28

7

8

14

291.06.06I

350

9/16" - 18

3/8" - 19

29

31

10

8

19

291.06.08I

350

9/16" - 18

1/2" - 14

31

37

14

8

22

291.08.06I

350

3/4" - 16

3/8" - 19

32

31

10

10

19

291.08.08I

350

3/4" - 16

1/2" - 14

34

37

14

10

22

291.10.08I

350

7/8" - 14

1/2" - 14

37

37

14

12

22

291.10.12I

280

7/8" - 14

3/4" - 14

39

40

18

12

27

291.12.12I

280

1 1/16" - 12

3/4" - 14

42

40

18

16

27

291.12.16I

210

1 1/16" - 12

1" - 11

45

50

24

16

33

291.16.12I

280

1 5/16" - 12

3/4" - 14

46

45

18

22

33

291.16.16I

210

1 5/16" - 12

1" - 11

46

50

24

22

33

291.20.20I

170

1 5/8" - 12

1 1/4" - 11

52

61

32

28

41

291.24.24I

140

1 7/8" - 12

1 1/2" - 11

64

59

33

33

50
