RIDUZIONE M - F BSPP (DIN/ISO 228) FORMATO B - Aertubi

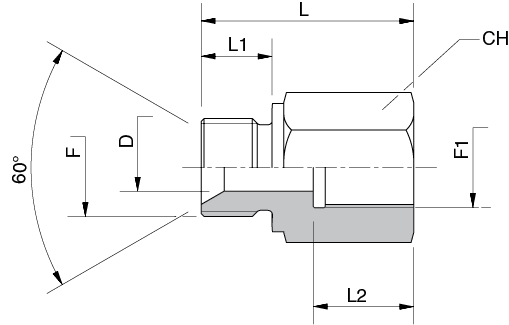

RIDUZIONE M - F BSPP (DIN/ISO 228) FORMATO B

Code

Code

Codice

Code

Código

Pressure

Druck

Pressione

Pression

Presión

F= BSPP

Thread • Gewinde

Filetto • Filetage • Rosca

F1= BSPP

Thread • Gewinde

Filetto • Filetage • Rosca

L

L1

L2

CH

108.2.4I

600

1/8" - 28

1/4" - 19

30

8

17

19

108.2.6I

600

1/8" - 28

3/8" - 19

32

8

17

24

108.4.2I

600

1/4" - 19

1/8" - 28

28

12

12

19

108.4.6I

600

1/4" - 19

3/8" - 19

36

12

17

24

108.4.8I

600

1/4" - 19

1/2" - 14

40

12

20

27

108.4.12I

600

1/4" - 19

3/4" - 14

43

12

22

36

108.6.4I

400

3/8" - 19

1/4" - 19

36

12

17

22

108.6.8I

400

3/8" - 19

1/2" - 14

41

12

20

27

108.6.12I

400

3/8" - 19

3/4" - 14

44

12

22

36

108.6.16I

400

3/8" - 19

1" - 11

46,5

12

24,5

41

108.8.6I

400

1/2" - 14

3/8" - 19

36

14

17

27

108.8.12I

400

1/2" - 14

3/4" - 14

46

14

22

36

108.8.16I

400

1/2" - 14

1" - 11

49

14

24,5

41

108.8.20I

250

1/2" - 14

1 1/4" - 11

53

14

26,5

55

108.12.8I

400

3/4" - 14

1/2" - 14

41

16

20

32

108.12.16I

400

3/4" - 14

1" - 11

51

16

24,5

41

108.12.20I

250

3/4" - 14

1 1/4" - 11

55

16

26,5

55

108.12.24I

250

3/4" - 14

1 1/2" - 11

57

16

28,5

60

108.16.12I

400

1" - 11

3/4" - 14

47

18

22

41

108.16.20I

250

1" - 11

1 1/4" - 11

57

18

26,5

55

108.16.24I

250

1" - 11

1 1/2" - 11

59

18

28,5

60

108.20.16I

250

1 1/4" - 11

1" - 11

52

20

24,5

50

108.20.24I

250

1 1/4" - 11

1 1/2" - 11

60

20

28,5

60

108.24.20I

250

1 1/2" - 11

1 1/4" - 11

58

22

26,5

55
