FEMMINA CURVA 45° JIC - SVASATA 74° FILETTO UNF - SAE J514 - Aertubi

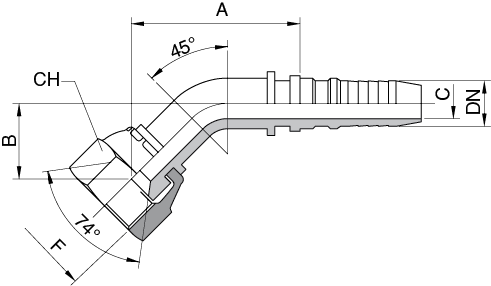

FEMMINA CURVA 45° JIC - SVASATA 74° FILETTO UNF - SAE J514

Code

Code

Codice

Code

Código

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=UNF/UN

Thread • Gewinde

Filetto • Filetage • Rosca

A

B

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

53555112I

19

3/4"

1 1/16" - 12

93

37,5

14,5

32

53556112I

19

3/4"

1 5/16" - 12

33

43,5

14,5

41

53555116I

25

1"

1 5/16" - 12

101

47

20

41

53556116I

25

1"

1 5/8" - 12

123

51

20

50

53555120I

31

1 1/4"

1 5/8" - 12

116

49

25

50

53556120I

31

1 1/4"

1 7/8" - 12

146

52

25

60

53555124I

38

1 1/2"

1 7/8" - 12

130

50

31

60

53555132I

51

2"

2 1/2" - 12

166,5

78

41

70
