Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
D |
A |
B |
C |
||
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||
|
3000 PSI |
|||||||
|
53545112I |
19 |
3/4" |
38,1 |
3/4" |
87 |
38 |
14,5 |
|
53545116I |
25 |
1" |
44,5 |
1" |
92 |
39 |
20 |
|
53545120I |
31 |
1 1/4" |
50,8 |
1 1/4" |
110 |
45 |
25 |
|
53545124I |
38 |
1 1/2" |
60,3 |
1 1/2" |
133 |
49 |
31 |
|
53545132I |
51 |
2" |
71,4 |
2" |
155 |
65 |
41 |
|
6000 PSI |
|||||||
|
53546112I |
19 |
3/4" |
41,3 |
3/4" |
88 |
38 |
14,5 |
|
53546116I |
25 |
1" |
47,6 |
1" |
92 |
40 |
20 |
|
53546120I |
31 |
1 1/4" |
54 |
1 1/4" |
110 |
46 |
25 |
|
53546124I |
38 |
1 1/2" |
63,5 |
1 1/2" |
133 |
48 |
31 |
|
53546132I |
51 |
2" |
79,4 |
2" |
155 |
65 |
41 |

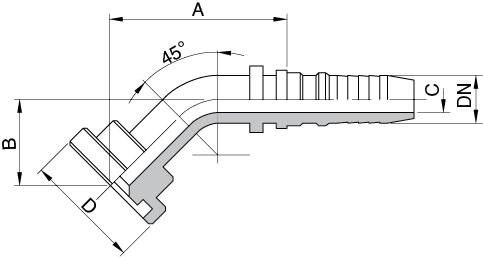

FLANGIA CURVA 45° 3000 - 6000 PSI SAE J518 - Aertubi
FLANGIA CURVA 45° 3000 - 6000 PSI SAE J518
