FEMMINA DIRITTA CONO 60° FILETTO GAS CILINDRICO - Aertubi

FEMMINA DIRITTA CONO 60° FILETTO GAS CILINDRICO

Code

Code

Codice

Code

Código

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=BSPP

Thread • Gewinde

Filetto • Filetage • Rosca

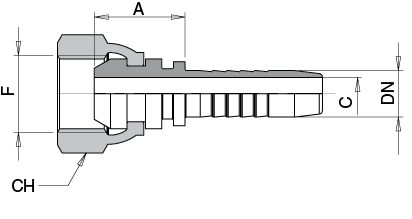

A

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

53100103I

05

3/16"

1/8" - 28

16,8

3

14

53101103I

05

3/16"

1/4" - 19

16,7

3

19

53101104I

06

1/4"

1/8" - 28

17,6

4

14

53100104I

06

1/4"

1/4" - 19

17,5

4

19

53102104I

06

1/4"

3/8" - 19

21,3

4

19

53103104I

06

1/4"

1/2" - 14

24

4

27

53102105I

08

5/16"

1/4" - 19

18,6

4

19

53100105I

08

5/16"

3/8" - 19

21,4

5,5

22

53101105I

08

5/16"

1/2" - 14

24

5,5

27

53100106I

10

3/8"

3/8" - 19

20,3

7

22

53101106I

10

3/8"

1/2" - 14

22

7

27

53101108I

12

1/2"

3/8" - 19

22

7

22

53100108I

12

1/2"

1/2" - 14

23

9,5

27

53102108I

12

1/2"

3/4 - 14

26

9,5

32

53102110I

16

5/8"

1/2 - 14

23

11,5

27

53100110I

16

5/8"

5/8 - 14

24

12

27

53101110I

16

5/8"

3/4" - 14

25,5

12

32

53100112I

19

3/4"

3/4" - 14

26

14,5

32

53101112I

19

3/4"

1" - 11

29,5

14,5

41

53100116I

25

1"

1" - 11

29

20

41
