MASCHIO GAS CONICO

Code

Code

Codice

Code

Código

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=BSPT

Thread • Gewinde

Filetto • Filetage • Rosca

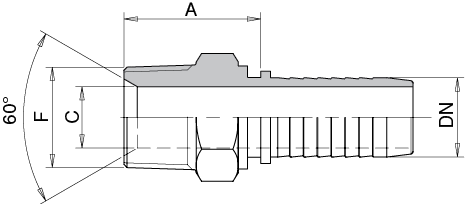

A

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

53150104I

06

1/4"

1/8" - 28

20

4

14

53151104I

06

1/4"

1/4" - 19

27,5

4

14

53152104I

06

1/4"

3/8" - 19

27,5

4

19

53150105I

08

5/16"

3/8" - 19

28,5

5,5

19

53150106I

10

3/8"

3/8" - 19

28

7

19

53151106I

10

3/8"

1/2" - 14

34

7

22

53150108I

12

1/2"

1/2" - 14

36,5

9,5

22

53151108I

12

1/2"

3/4" - 14

34,5

9,5

27

53150110I

16

5/8"

3/4" - 14

35,5

12

27

53150112I

19

3/4"

3/4" - 14

36

14,5

27

53151112I

19

3/4"

1" - 11

47

14,5

36

53150116I

25

1"

1" - 11

47,5

20

36

53150120I

31

1 1/4"

1 1/4"-11

45

25

46

53150124I

38

1 1/2"

1 1/2"-11

45,5

31,5

50

53150132I

51

2"

2" - 11

54

43

65
