FEMMINA CURVA 90° CONO 60° FILETTO GAS CILINDRICO - Aertubi

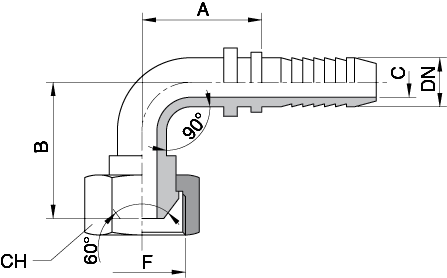

FEMMINA CURVA 90° CONO 60° FILETTO GAS CILINDRICO

Code

Code

Codice

Code

Código

DN

Hose I.D. • Rohr ID

Ø Tubo • Ø Tube • Ø Tubo

F=BSPP

Thread • Gewinde

Filetto • Filetage • Rosca

A

B

C

Ch

mm

Inches • Zoll • Pollici

Pouces • Pulgadas

53171116I

25

1"

1 1/4" - 11

82

81

20

50

53170120I

31

1 1/4"

1 1/4" - 11

82

81

25,5

50

53170124I

38

1 1/2"

1 1/2" - 11

104

102

31

55

53170132I

51

2"

2" - 11

142

128

41

70

53170140I

63

2 1/2"

2 1/2" - 11



54

90
