Code Code Codice Code Código |
DN Hose I.D. • Rohr ID Ø Tubo • Ø Tube • Ø Tubo |
F=UNF/UN Thread • Gewinde Filetto • Filetage • Rosca |
A |
B |
C |
Ch |
|
|
mm |
Inches • Zoll • Pollici Pouces • Pulgadas |
||||||
|
53198103I |
05 |
3/16" |
7/16" - 20 |
40 |
16 |
3 |
17 |
|
53198104I |
06 |
1/4" |
7/16" - 20 |
42 |
15 |
4 |
17 |
|
53200104I |
06 |
1/4" |
1/2" - 20 |
36 |
15,5 |
4 |
17 |
|
53199104I |
06 |
1/4" |
9/16" - 18 |
34,5 |
14,5 |
4 |
19 |
|
53198105I |
08 |
5/16" |
9/16" - 18 |
44,5 |
20 |
5,5 |
19 |
|
53198106I |
10 |
3/8" |
9/16" - 18 |
47 |
20 |
7 |
19 |
|
53199106I |
10 |
3/8" |
3/4" - 16 |
42 |
18,5 |
7 |
24 |
|
53198108I |
12 |
1/2" |
3/4" - 16 |
57 |
22,5 |
9,5 |
24 |
|
53199108I |
12 |
1/2" |
7/8" - 14 |
59 |
22 |
9,5 |
27 |
|
53198110I |
16 |
5/8" |
7/8" - 14 |
66 |
27 |
12,5 |
27 |
|
53199110I |
16 |
5/8" |
1 1/16" - 12 |
67 |
26,5 |
12,5 |
32 |
|
53198112I |
19 |
3/4" |
1 1/16" - 12 |
78 |
28 |
14,5 |
32 |
|
53198116I |
25 |
1" |
1 5/16" - 12 |
97 |
38 |
20 |
41 |
|
53198120I |
31 |
1 1/4" |
1 5/8 - 12 |
103 |
37 |
25 |
50 |
|
53198124I |
38 |
1 1/2" |
1 7/8 - 12 |
115,5 |
49 |
31,5 |
55 |

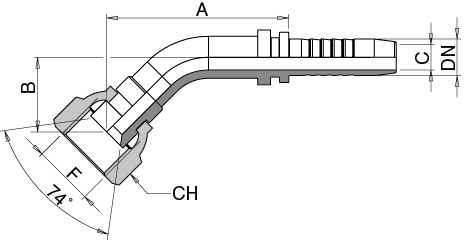

FEMMINA CURVA 45° JIC - SVASATA 74° SAE J514 FILETTO UNF - Aertubi
FEMMINA CURVA 45° JIC - SVASATA 74° SAE J514 FILETTO UNF
